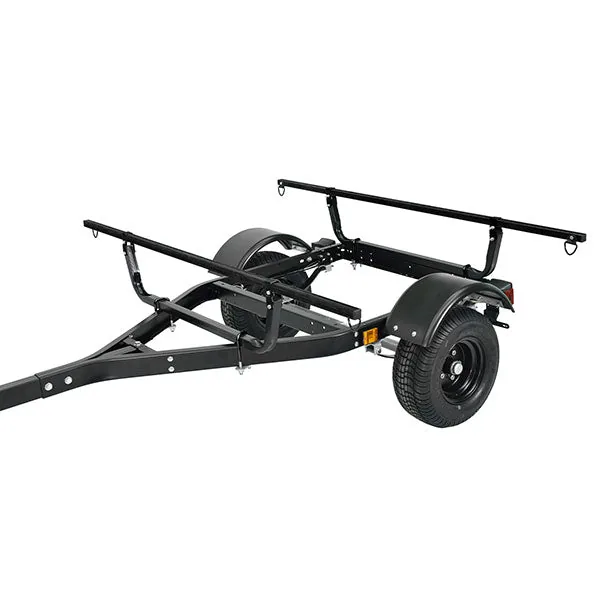

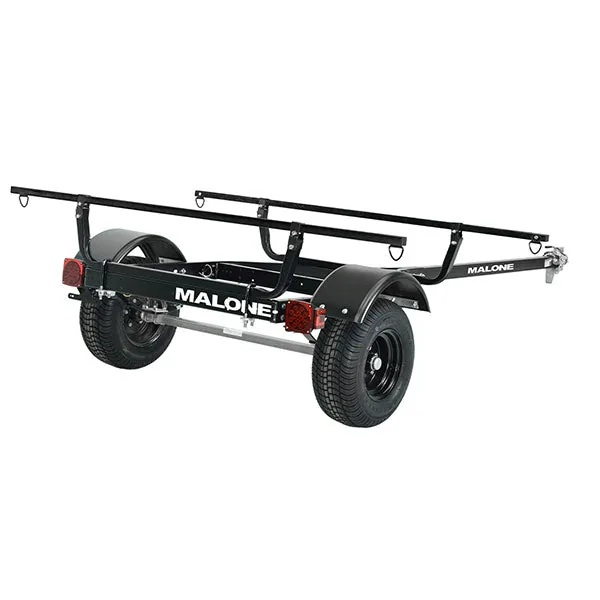

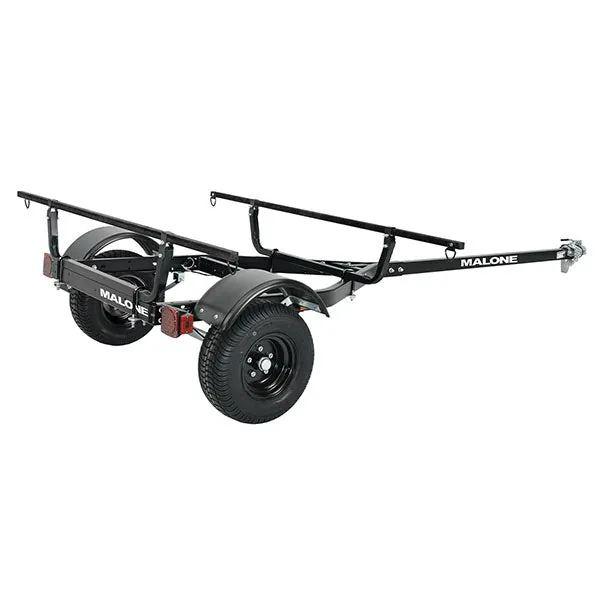

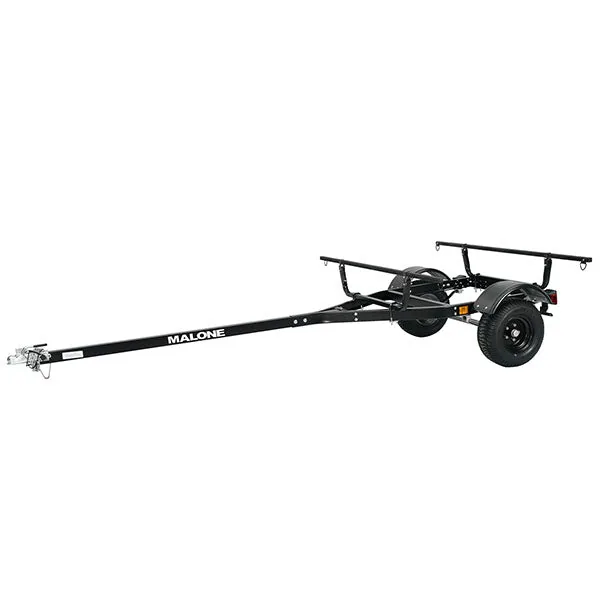

The frame is black powder coat over pre-galvanized steel, and the whole trailer is fully submersible, so you can back it down a ramp. It comes with a reinforced steel tongue, plug-and-play submersible LED lights, sealed hubs and adjustable load bars, but no kayak carriers. Assembly takes about three to four hours with common tools.
Specs at a glance
- Load capacity: 800 lb, boats up to 20 ft
- Length: 13 ft 3 in; width 55 in
- Weight: 197 lb without accessories
- Load bars: 78 in, 30 in from the ground, 44 to 63 in spread
- Hitch: 2 in ball, 18 in ball height
- Frame: 11-gauge powder-coated, marine grade galvanized steel
- Warranty: five-year limited
Good to know
- Carriers are not included, so add J-racks, bunks or saddles to suit your boats.
- Check tire pressure before each trip; Malone recommends 35 to 40 PSI.
KayakDIY take: A base trailer leaves room to set up carriers the way your boats need. For the gear side, see my fishing kayak accessories guide.
