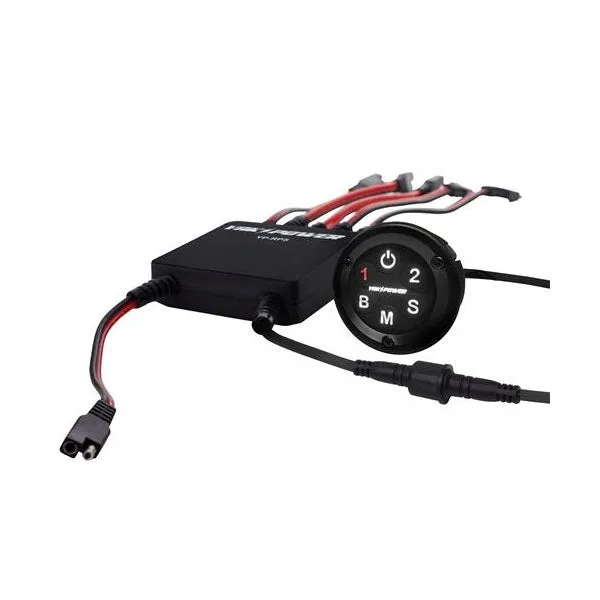

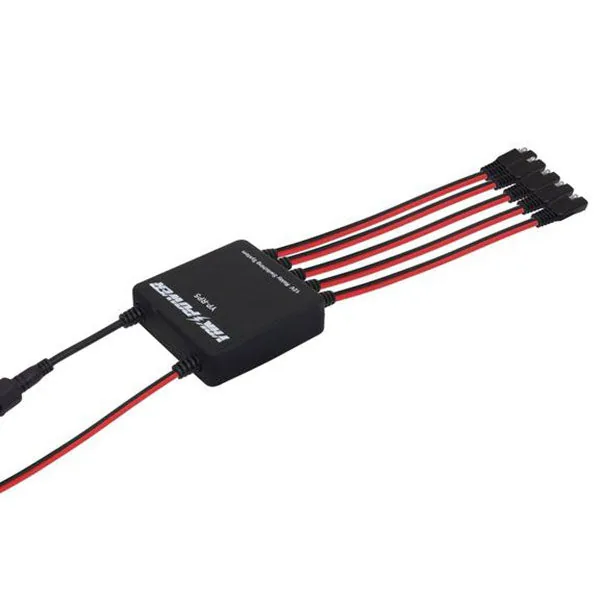

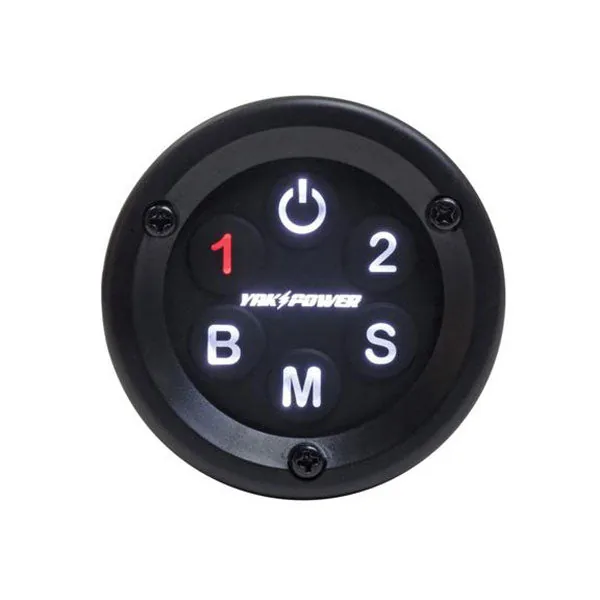

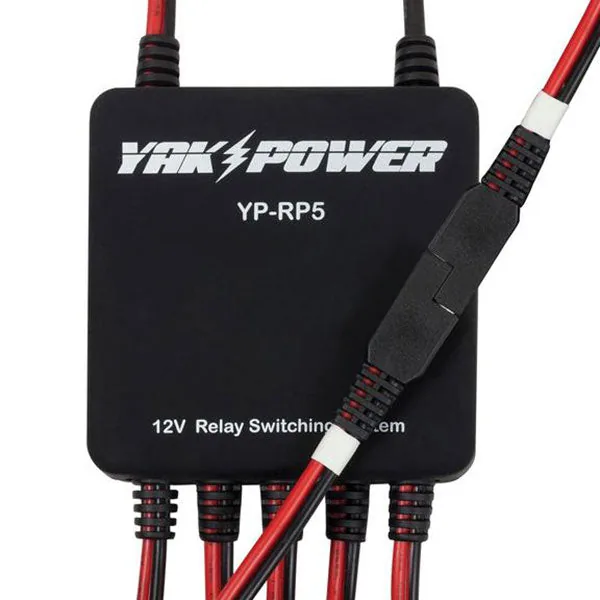

The Power Panel lets you plug in accessories and switch each one on its own. Buttons light red when active, and a master switch powers the whole system up or down. It plugs into a Yak Power battery box or battery pigtail with no splicing.
Specs at a glance
- Outlets: 5 switched (bow, mid-ship, stern, ACC 1, ACC 2)
- Wire gauge: 14 AWG
- Current: 15 amps total
- Mounting hole: 2 1/8″
- Mounting depth: 1 1/4″
- Control cable: 22″
- Weight: 1 lb
Good to know
- You will need a 2 1/8 inch hole for the control panel, so check the space behind your deck.
- Keep total draw under 15 amps and match red to red on every connector.
KayakDIY take: A switch panel makes it easy to shut off gear you are not using and save battery. For more options, see my fishing kayak accessories guide.
