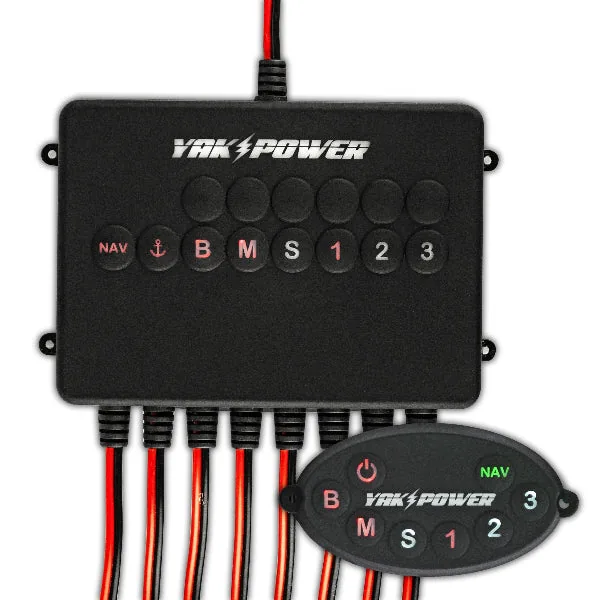

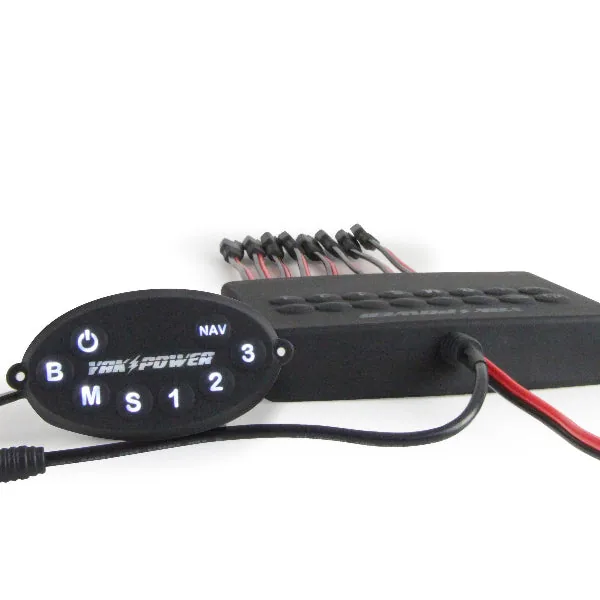

The kit centers on an 8-outlet relay pack with a 12 volt keypad, Bluetooth app control, last mode memory and an inline 15A fuse. It comes with bow, mid-ship and stern power ports, a battery pigtail and accessory plugs, and it is set up to work wirelessly with Lowrance HDS Live, HDS Pro and Elite FS graphs once Lowrance releases the needed software.
Specs at a glance
- Switching: 8 switched outlets with master power
- Control: 12 volt keypad, Bluetooth app
- Fuse: inline 15A

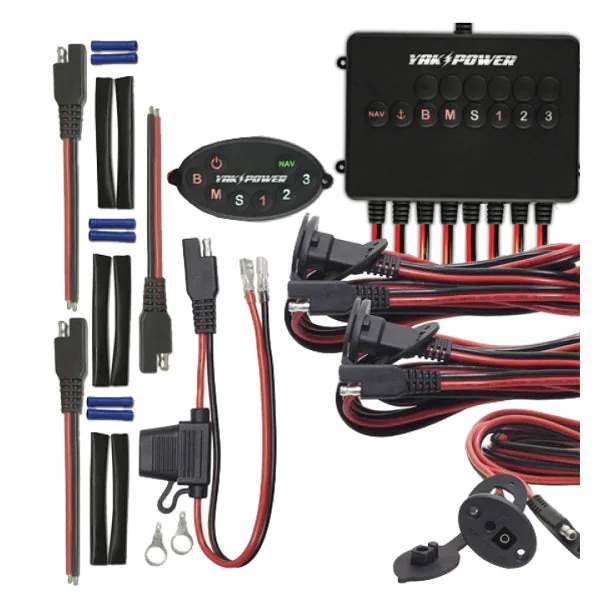

- Includes: YP-RP8R switcher, 1 mid-ship port (4 ft), 2 bow/stern ports (8 ft), 12″ battery pigtail, 3 accessory connectors

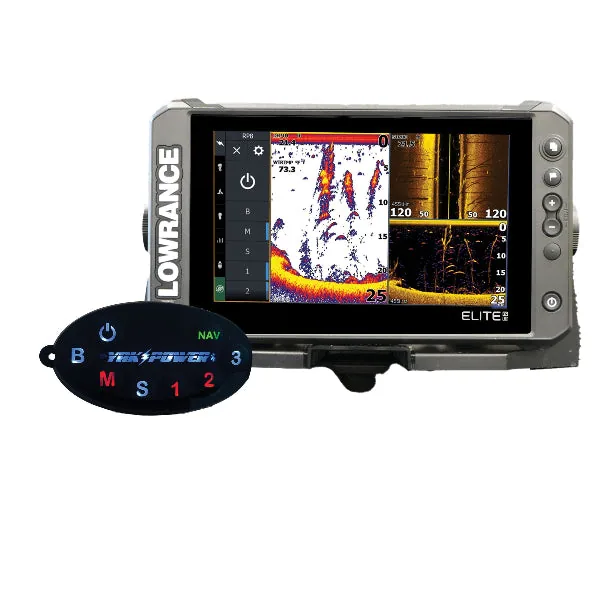

- Lowrance compatibility: HDS Live, HDS Pro, Elite FS (requires Lowrance software update)
Good to know
- A battery is not included, so plan your battery and mounting spot before you start rigging.
- High current gear like a trolling motor or a big LED light bar needs a separate heavy duty relay and proper wire gauge, so do not run it straight off this system.
KayakDIY take: Plug-and-play wiring saves a lot of cutting and splicing when you rig electronics. For more options, see my fishing kayak accessories guide.
