Track Mounted Magnetic Lure Bin

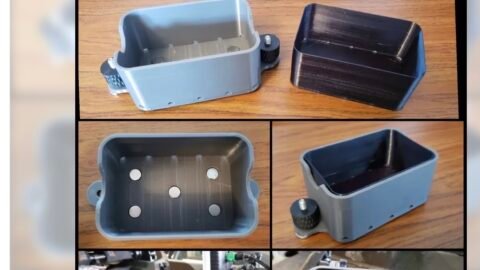

This 3D Printed track mount bin holds lures and has removable liner. The lure bin has drain holes so it doesn’t fill with water.

The magnets in the bottom are 12mm x 3mm neodymium from Home Depot. Creator of this roughed up one side with 80 grit sand paper and then just super glued them in. The whole thing is mounted with Yakattack mighty bolts that are secured by 1/4 – 20 nuts held in knurled knobs.

The user printed the main box in PETG and the liner in semiflex TPU, but just about any filament should work fine.

Credit: @hotbrass2005

Attachments:

1.



1. Base_with_Drain_Holes.stl
2. Liner_with_Drain_Holes.stl
3. knurled_knob_for_quarter_20_nut.stl
