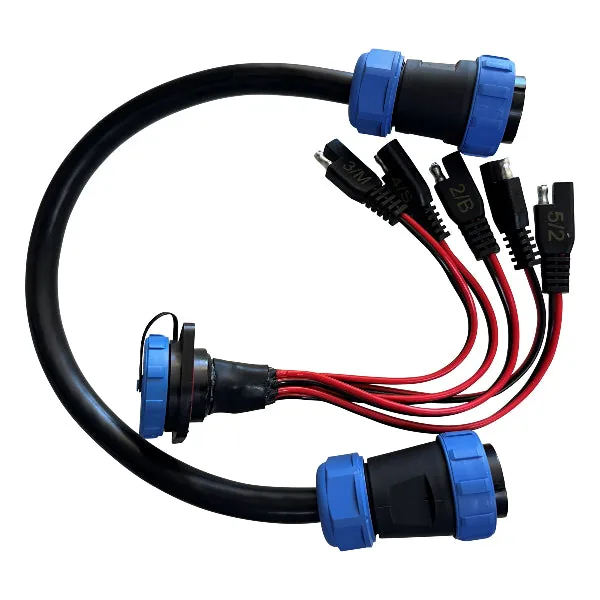

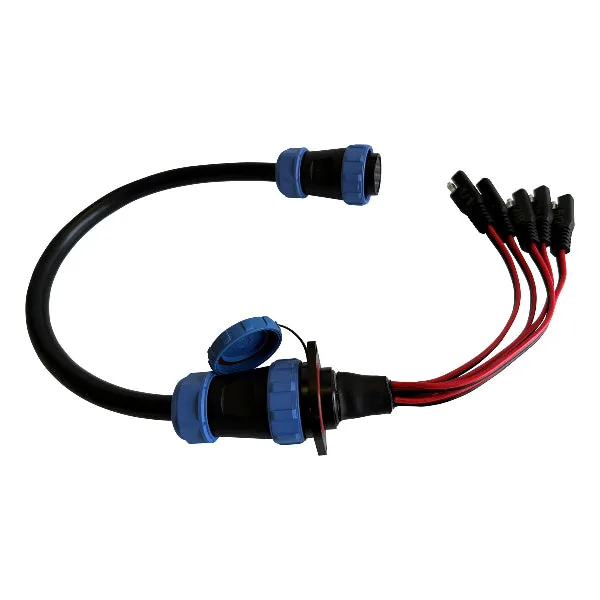

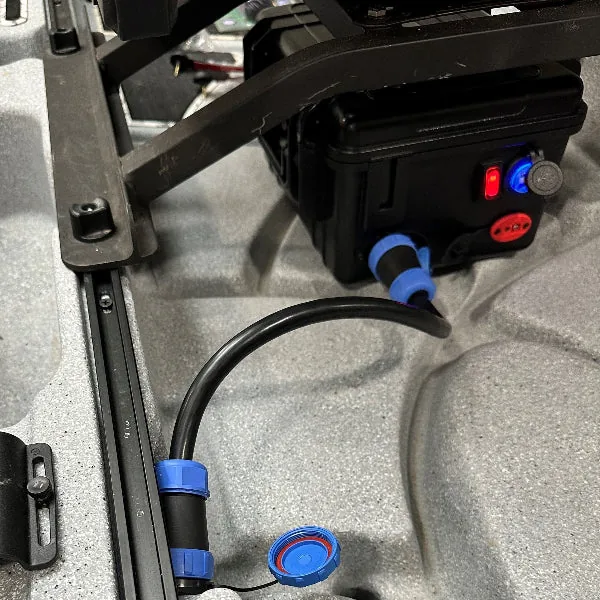

The panel mount harness installs in the hull with individual SAE plug-and-play connectors for each accessory. The 18 inch jumper links it to the Portable Power Station, so you drop the box in, plug it in, and take it inside later for charging. It replaces the pigtail plug that comes with the Power Station.
Specs at a glance
- Part number: YP-QD5X-18K
- Panel mount harness: 7.5 in, 5 circuit with SAE connectors
- Drill hole size: 1 1/8 in
- Jumper harness: 18 in, dual plug quick disconnect
- Connectors: Heavy duty, waterproof 10 pin
- Current: 15 amps total
- Compatible with: Yak Power Portable Power Station and Yak Power accessories
Good to know

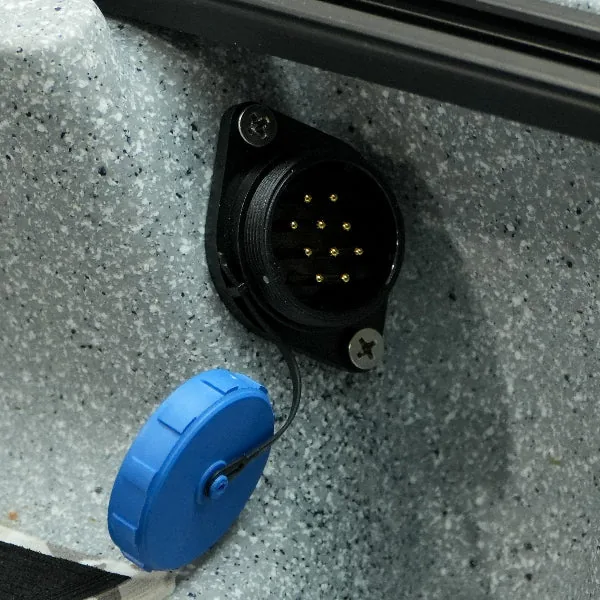

- The panel mount needs a 1 1/8 in hole, so plan where it goes before you drill.
- Push connectors fully together and keep red (+) to red (+) when wiring.
KayakDIY take: Quick disconnects keep the electronics out of the weather between trips. For more rigging gear, see my fishing kayak accessories guide.
