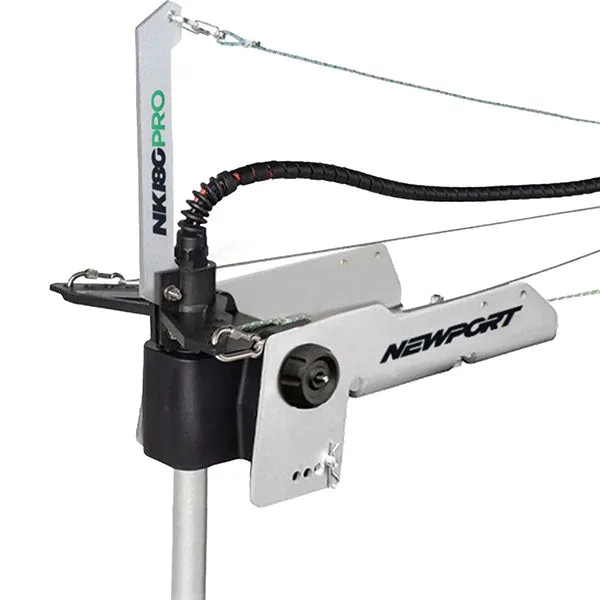

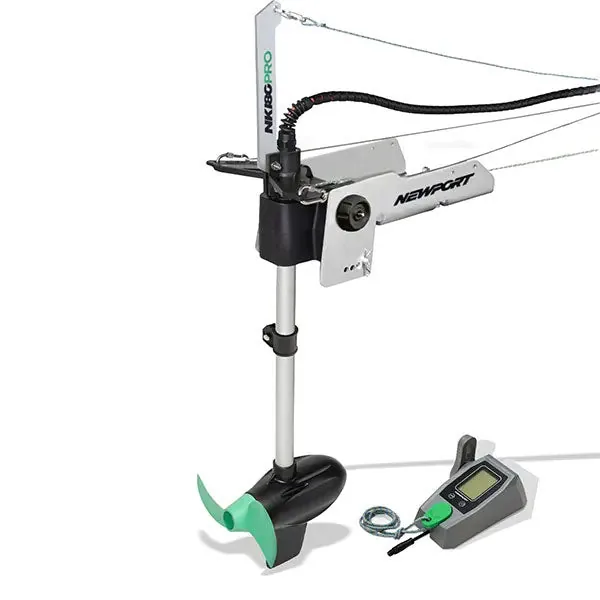

The NK180 HD is the lightest motor in Newport’s NK HD line, rated at 65 lb of thrust (1.8 HP equivalent). It ships with a steering triangle, retract arm, digital speed controller with display, four-bolt aluminum mount, and lift and reverse control lines. It runs on one 24V LiFePO4 battery, which is sold separately.
Specs at a glance
- Power: 600W peak, 65 lb thrust (1.8 HP equivalent)
- Voltage: 24V DC; one 24V LiFePO4 battery (not included)
- Weight: 14.3 lbs
- Shaft length: 21.7 in
- Mount: 4-bolt pattern
- Max amp draw: 25 AMPs
- Included: motor, steering triangle, retract arm, speed controller with display, aluminum mount, control lines, stop key, steering cable kit, install tools
Good to know
- Check that your kayak has a four-bolt motor mount, and note Newport says the included steering cable kit may not fit every kayak brand.
- Budget for a 24V LiFePO4 battery, since the motor ships without one.
KayakDIY take: A light motor is easier to mount, lift and live with, which matters more on a kayak than raw top speed. For more options, see my best kayak motors guide.
